Description

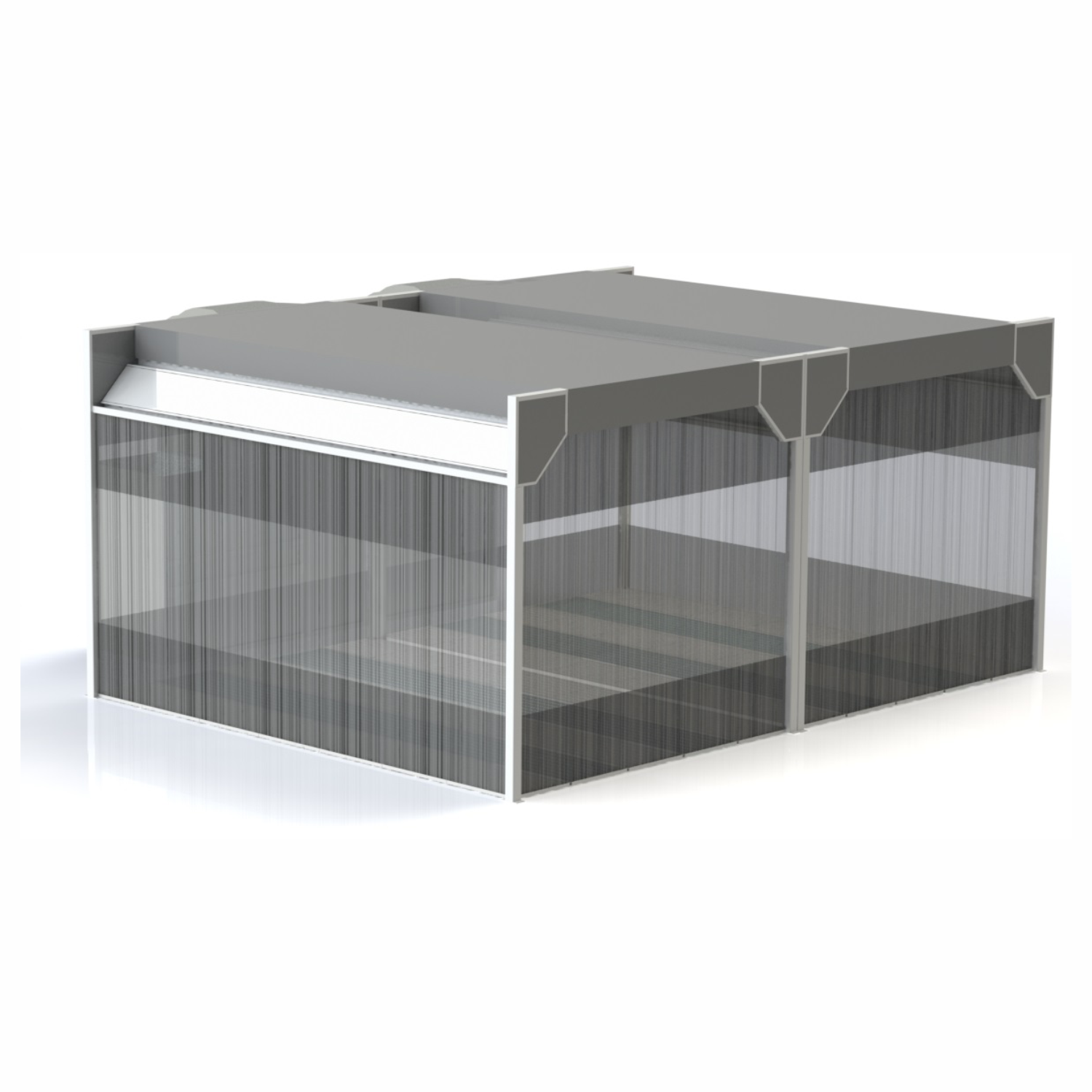

Single or double multi-function areas for surface preparation before painting, in automotive bodyshop.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
Details
Characteristics
Innenabmessungen (LxBxH), mm
—
6 200 x (3 626 x2) x 2 700
Abmessung (LxBxH), mm (Einheiten sind enthalten)
—
7 300 x (3 626 x2) x 3 500
Befestigung des Plenums
—
Support profiles
Luftabsaugung
—
"Pit" (300 mm), 2 line grates
Standardbeleuchtung (LED)
—
(24 + 24) lamps x 16 W
Abluftklappe (1 oder 2 Stück)
—
Manual
All characteristics
Description
Single or double multi-function areas for surface preparation before painting, in automotive bodyshop.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
Characteristics
|
Innenabmessungen (LxBxH), mm
|
6 200 x (3 626 x2) x 2 700 |
|
Abmessung (LxBxH), mm (Einheiten sind enthalten)
|
7 300 x (3 626 x2) x 3 500 |
|
Befestigung des Plenums
|
Support profiles |
|
Luftabsaugung
|
"Pit" (300 mm), 2 line grates |
|
Standardbeleuchtung (LED)
|
(24 + 24) lamps x 16 W |
|
Abluftklappe (1 oder 2 Stück)
|
Manual |
|
Gitterroste
|
(2 lines grates / 3 lines flat sheet) x 2 |
|
Max. Netzlast
|
500 kg |
|
Auspuffanlage
|
5.5 kW + 5.5 kW / 36 000 m3/h |
|
Luftzufuhr Einheit
|
― |
|
Wärmetauscher mit Dieselbrenner
|
― |
|
Filtersystem (ISO 16890)
|
Floor Filter (ePM10 35~40%) / Pre-Filter (ePM10 40~45%) / Ceiling Filter (M5/ePM10 55%) |
|
PVC-Vorhänge
|
2 front + 3 side |
|
Max. elektrische Leistung
|
12 kW (380V, 50 Hz) |
|
Befestigung des Plenums
|
Hanged to ceiling / Full gridded floor |
|
Luftabsaugung
|
Metal Basement (400 mm) + Rams (4 pcs.) / ATEX motor and fans |
|
Wärmetauscher mit Gasbrenner
|
― |
|
Wärmetauscher mit elektrischer
|
― |
|
Auslassluftklappe
|
Pneumo / Electro |
