Description

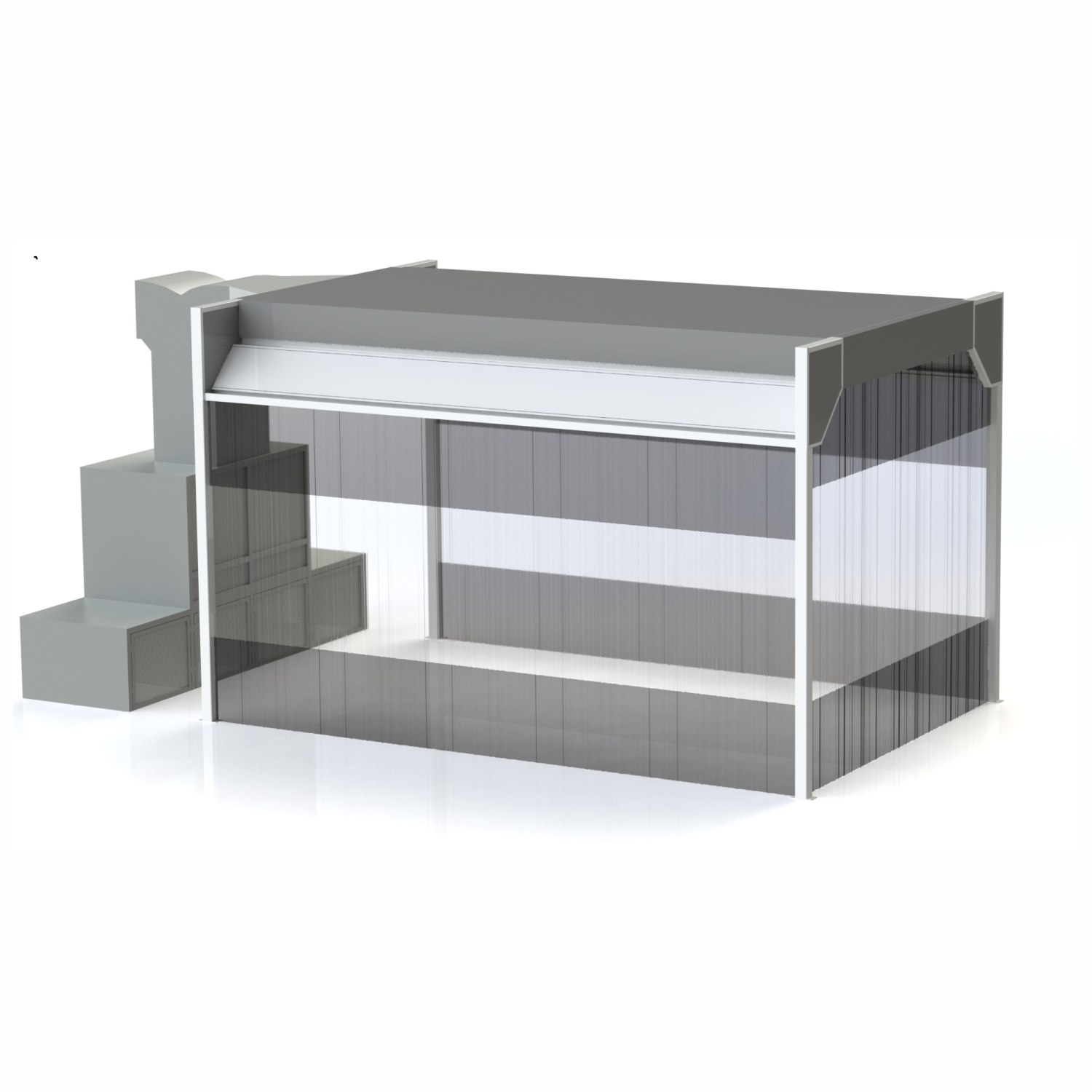

Single or double multi-function areas for surface preparation before painting, in automotive bodyshop.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
Details
Characteristics
Innenabmessungen (LxBxH), mm
—
6 200 x 3 626 x 3 100
Abmessung (LxBxH), mm (Einheiten sind enthalten)
—
7 600 x 3 626 x 3 400
Befestigung des Plenums
—
Support profiles
Luftabsaugung
—
Air extraction from the back
Standardbeleuchtung (LED)
—
24 lamps x 16 W
Abluftklappe (1 oder 2 Stück)
—
Manual
All characteristics
Description
Single or double multi-function areas for surface preparation before painting, in automotive bodyshop.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
A well-lit and ventilated work area designed for job tasks on vehicles:
- dismantling
- light bodywork
- putty filling
- drying
- sanding
- degreasing
- masking
Ventilation of ONETECH preparation stations is organized in one of three ways:
1. Vertical ventilation with exhaust through metal base, total height 300 or 400 mm, with 2 rows of galvanized grilles and 3 rows of smooth panels, with two entrance ramps.
2. Semi-horizontal way with ventilation through the filtration system located in the back.
3. Vertical ventilation with ventilation through a concrete pit 300 mm, blocked by 2 rows of galvanized grilles and 3 rows of smooth panels.
Characteristics
|
Innenabmessungen (LxBxH), mm
|
6 200 x 3 626 x 3 100 |
|
Abmessung (LxBxH), mm (Einheiten sind enthalten)
|
7 600 x 3 626 x 3 400 |
|
Befestigung des Plenums
|
Support profiles |
|
Luftabsaugung
|
Air extraction from the back |
|
Standardbeleuchtung (LED)
|
24 lamps x 16 W |
|
Abluftklappe (1 oder 2 Stück)
|
Manual |
|
Gitterroste
|
― |
|
Max. Netzlast
|
― |
|
Auspuffanlage
|
7.5 kW (24 000 m3/h) |
|
Luftzufuhr Einheit
|
― |
|
Wärmetauscher mit Dieselbrenner
|
― |
|
Filtersystem (ISO 16890)
|
Exhaust filter (ePM10 35~40%) / Pre-Filter (ePM10 40~45%) / Ceiling Filter (M5/ePM10 55%) |
|
PVC-Vorhänge
|
1 front + 2 side |
|
Max. elektrische Leistung
|
8 kW (380V, 50 Hz) |
|
Befestigung des Plenums
|
Hanged to ceiling |
|
Luftabsaugung
|
― / ATEX motor and fans |
|
Wärmetauscher mit Gasbrenner
|
― |
|
Wärmetauscher mit elektrischer
|
― |
|
Auslassluftklappe
|
Pneumo / Electro |
