To order
Art.: NT16-03
Technical features:
- Weight: 400 kg
- Max width: 1 750 mm
- Min width: 595 mm
- Max lift: 1 000 mm
- Min height: 260 mm
- Length: 1 950 mm
- Capacity: 3 000 kg
- Pump: 400 bar
- Buffer: 60 mm
- Packaging: 2 000 x 1 200 x 700 mm
- The perfect lift for preparation areas or paint booth - 3000 Kg max load.
- According to ATEX rules both in the hydropneumatic or electro-hydraulic operated version.
- Suitable for recessed installation or on-ground installation (Low profile version).

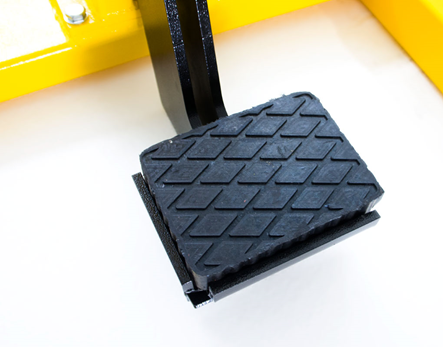

- 4 rubber pads h. 30 mm
Model number: NT16S-001
- 4 rubber pads h. 60 mm
Model number: NT16S-002
- 4 rubber pads h. 120 mm
Model number: NT16S-003

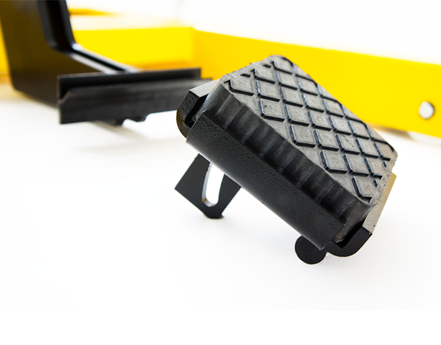

- 4 rubber ramps for low cars
Model number: NT16S-004

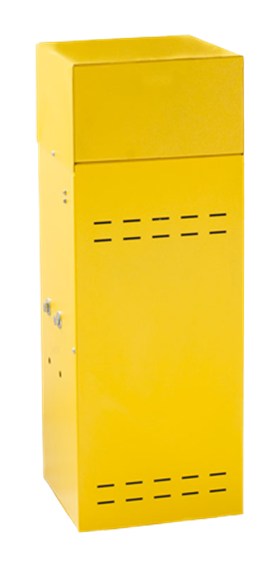

Pneumo hydraulic control pump:
Electro-hydraulic control unit:
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-04
Technical features:
- Weight: 400 kg
- Max width: 1 750 mm
- Min width: 595 mm
- Max lift: 1 000 mm
- Min height: 260 mm
- Length: 1 950 mm
- Capacity: 3 000 kg
- Pump: 400 bar
- Buffer: 60 mm
- Packaging: 2 000 x 1 200 x 700 mm
- The perfect lift for preparation areas or paint booth - 3000 Kg max load.
- According to ATEX rules both in the hydropneumatic or electro-hydraulic operated version.
- Suitable for recessed installation or on-ground installation (Low profile version).
- 4 rubber pads h. 30 mm
Model number: NT16S-001
- 4 rubber pads h. 60 mm
Model number: NT16S-002
- 4 rubber pads h. 120 mm
Model number: NT16S-003
- 4 rubber ramps for low cars
Model number: NT16S-004
Pneumo hydraulic control pump:
Electro-hydraulic control unit:
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-05
Technical features:
- Weight: 400 kg
- Max width: 1 750 mm
- Min width: 595 mm
- Max lift: 1 000 mm
- Min height: 260 mm
- Length: 1 950 mm
- Capacity: 3 000 kg
- Pump: 400 bar
- Buffer: 60 mm
- Packaging: 2 000 x 1 200 x 700 mm
- The perfect lift for preparation areas or paint booth - 3000 Kg max load.
- According to ATEX rules both in the hydropneumatic or electro-hydraulic operated version.
- Suitable for recessed installation or on-ground installation (Low profile version).
- 4 rubber pads h. 30 mm
Model number: NT16S-001
- 4 rubber pads h. 60 mm
Model number: NT16S-002
- 4 rubber pads h. 120 mm
Model number: NT16S-003
- 4 rubber ramps for low cars
Model number: NT16S-004
Pneumo hydraulic control pump:
Electro-hydraulic control unit:
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-06
Technical features:
- Weight: 400 kg
- Max width: 1 750 mm
- Min width: 595 mm
- Max lift: 1 000 mm
- Min height: 260 mm
- Length: 1 950 mm
- Capacity: 3 000 kg
- Pump: 400 bar
- Buffer: 60 mm
- Packaging: 2 000 x 1 200 x 700 mm
- The perfect lift for preparation areas or paint booth - 3000 Kg max load.
- According to ATEX rules both in the hydropneumatic or electro-hydraulic operated version.
- Suitable for recessed installation or on-ground installation (Low profile version).
- 4 rubber pads h. 30 mm
Model number: NT16S-001
- 4 rubber pads h. 60 mm
Model number: NT16S-002
- 4 rubber pads h. 120 mm
Model number: NT16S-003
- 4 rubber ramps for low cars
Model number: NT16S-004
Pneumo hydraulic control pump:
Electro-hydraulic control unit:
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-07
Technical features:
- Weight: 400 kg
- Max width: 1 750 mm
- Min width: 595 mm
- Max lift: 1 000 mm
- Min height: 260 mm
- Length: 1 950 mm
- Capacity: 3 000 kg
- Pump: 400 bar
- Buffer: 60 mm
- Packaging: 2 000 x 1 200 x 700 mm
- The perfect lift for preparation areas or paint booth - 3000 Kg max load.
- According to ATEX rules both in the hydropneumatic or electro-hydraulic operated version.
- Suitable for recessed installation or on-ground installation (Low profile version).
- 4 rubber pads h. 30 mm
Model number: NT16S-001
- 4 rubber pads h. 60 mm
Model number: NT16S-002
- 4 rubber pads h. 120 mm
Model number: NT16S-003
- 4 rubber ramps for low cars
Model number: NT16S-004
Pneumo hydraulic control pump:
Electro-hydraulic control unit:
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-08
- A mobile hydraulic crick lift, with a column structure, built and manufactured to allow the operator to work on the car’s wheel or under-neath at man’s height.
- The raise and descent movement are obtained using a sleigh fixed to a chain connected to an hydraulic cylinder.
- Hydro-pneumatic pump, reduced dimensions and a remarkable ease of handling, are obtained through wheels and allowing an easy displacement are its main features.
- Time saver in quick lifting operation. The vehicle (Max 3000 Kg) can be lifted up by side to facilitate all those operations that are normally done by bending down - i.e.: sanding process, dis/assembling operations, works on bumpers, car underbody washing …
Car underbody fork lift
Model number: NT16S-005
Applications
- Lifting on the front wheel
- Lifting on the underdoor
- Lifting on the rear wheel
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-02
The only platform-lift with which a vehicle can be moved:
Rolling lift & Rolling platform-lift:
- Adjustable platforms positioning makes it suitable for both city cars and GT cars.
- Anti-rolling safety system on all platforms.
- Quick and easy vehicle boarding, no manual intervention.
- Large diameter wheels to facilitate the vehicle movement - just one operator required.
- Low profile, 10 сm only as minimum height.
- Can be used with under-body lifting arms in place of wheels platform.
Rolling lift & Rolling platform-lift:
- The best equipment for «long term works» on vehicles, also perfect for vintage car restorers.
- Essential for electric vehicles when the battery is off (transmission and steering are not operating) and when it must be moved in different workstations during processing.
- A key, to save time and place, when it’s necessary to move cars inside small body-shops / work-shops.
- When aboard, the vehicle can move, spin, or roll in any direction.
- Can be used with under-body lifting arms in place of wheels platform.
Description
To order
Our managers contacts you to verify your order
To order
Art.: NT16-01
- The only equipment that allows the end user to move the vehicle together with the lift all around the work-shop.
- Thanks to a double acting powering system and four pivoting wheels, easily assembled to the lift arms, the operator can shift the car placed on the lift to the different working areas of the body-shop.
Technical specifications:
Description
To order
Our managers contacts you to verify your order
