Description
ONETECH TRUСKER models
The TRUСKER models are designed for the trucks and buses.
Different solutions for the location of the plant (right, left, roof), as well as the availability of options allows us to meet any customer requirements.
ONETECH TRUСKER NT-16000
The TRUСKER models are designed for the trucks and buses.
Different solutions for the location of the plant (right, left, roof), as well as the availability of options allows us to meet any customer requirements.
ONETECH TRUСKER NT-16000
· Natural gas burner: Yes
· Electrical heating system: Yes
· Additional exhaust channel (grilles + filter trays) (1 line grates): Yes
· Invertor: Yes
· Second entrance / exit door (drive through booth): Yes
· Replacement of leaf door to electric roller doors: upon request
· Door dividing the spray booth into 2 separately ventilated zones: Yes
· 3D lift (pneumatic or hydrolic): Yes
Details
Characteristics

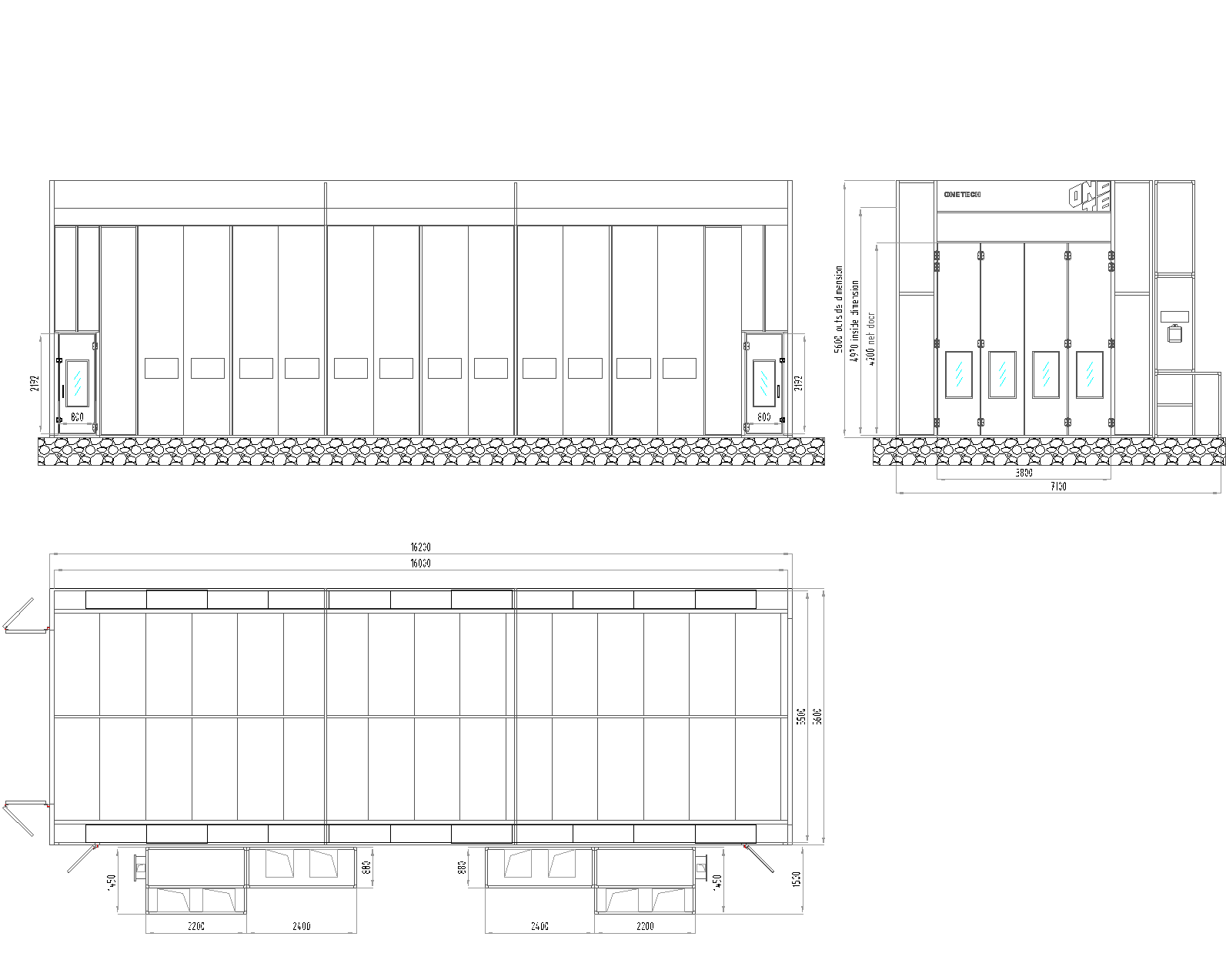

Innenmaße (L x B x H), mm
—
15 000 x 5 000 x 4 940
Abmessung, mm
—
16 200 x 5 600 x 5 600 (units are excluded)
Eingangstür (B x H), mm
—
3 800 x 4 200
Servicetür mit „Anti-Panik“ (B x H), mm
—
800 x 2 192 x 2 pcs.
Wandtafeln
—
50 mm with glass wool insulation
Deckenplatten
—
40 mm with PU foam insulation
All characteristics
Description
ONETECH TRUСKER models
The TRUСKER models are designed for the trucks and buses.
Different solutions for the location of the plant (right, left, roof), as well as the availability of options allows us to meet any customer requirements.
ONETECH TRUСKER NT-16000
The TRUСKER models are designed for the trucks and buses.
Different solutions for the location of the plant (right, left, roof), as well as the availability of options allows us to meet any customer requirements.
ONETECH TRUСKER NT-16000
· Natural gas burner: Yes
· Electrical heating system: Yes
· Additional exhaust channel (grilles + filter trays) (1 line grates): Yes
· Invertor: Yes
· Second entrance / exit door (drive through booth): Yes
· Replacement of leaf door to electric roller doors: upon request
· Door dividing the spray booth into 2 separately ventilated zones: Yes
· 3D lift (pneumatic or hydrolic): Yes
Download catalog
Characteristics
|
Innenmaße (L x B x H), mm
|
15 000 x 5 000 x 4 940 |
|
Abmessung, mm
|
16 200 x 5 600 x 5 600 (units are excluded) |
|
Eingangstür (B x H), mm
|
3 800 x 4 200 |
|
Servicetür mit „Anti-Panik“ (B x H), mm
|
800 x 2 192 x 2 pcs. |
|
Wandtafeln
|
50 mm with glass wool insulation |
|
Deckenplatten
|
40 mm with PU foam insulation |
|
Beleuchtung oben (LED), W
|
88 x 16 |
|
Horizontale Beleuchtung mit niedrigem Niveau (LED), W
|
72 x 8 |
|
Frischluft- und Heizungsanlagen (Ventilatormotoren), kW
|
2 x 7.5 |
|
Frischluft- und Heizgeräte (Luftmenge), m3/h
|
72 000 |
|
Frischluft- und Heizeinheiten (max. Trocknungstemperatur), ⁰C
|
60 / 80 ⁰C |
|
Frischluft- und Heizeinheiten (Heizung (Dieselbrenner), kcal/h
|
2 х 345 000 |
|
Abluftanlage (Ventilatormotoren), kW
|
2 x 11 |
|
Abluftanlage (Luftdurchsatz), m3/h
|
72 000 |
|
Filtersystem (Bodenfilter „paint stop“)
|
G3 |
|
Filtersystem (Vorfilter)
|
G4 |
|
Filtersystem (Deckenfilter)
|
F5 |
|
Gitterroste
|
1 Line grates (concrete excavation project will be made) |
|
Max. Gewicht, kg/Rad
|
Without metal basement (with tunnel) |
|
Max. elektrische Leistung, kW
|
50 |
|
Schalttafel (Leistung), V
|
380 |
|
Schalttafel (Befehl), V
|
24 |
|
Luftkanäle und Schornsteine
|
Belong to the customer |
