ONETECH Basic
Get Offer
Самовывоз сегодня - бесплатно
Доставка завтра - 390 ₽
Доставка завтра - 390 ₽
Description
The ONETECH Basic and ONETECH Pro paint booths are designed for painting cars and individual parts.
Different solutions for the location of the plant (right, left, rear, roof), as well as the availability of options allows us to meet any customer requirements.
OPTIONS:
· Natural gas burner: Yes
· Electrical heating system: Yes
· Low level lighting (horizontal): 39 x 8 W
· Full gridded floor:
5 lines (500 kg/wheel)
2 lines (650 kg/wheel)
3 lines (500 kg/wheel)
· Invertor Yes
· Second entrance / exit door (drive through booth): Yes
· Replacement of leaf door to electric roller doors: upon request
Details
Characteristics

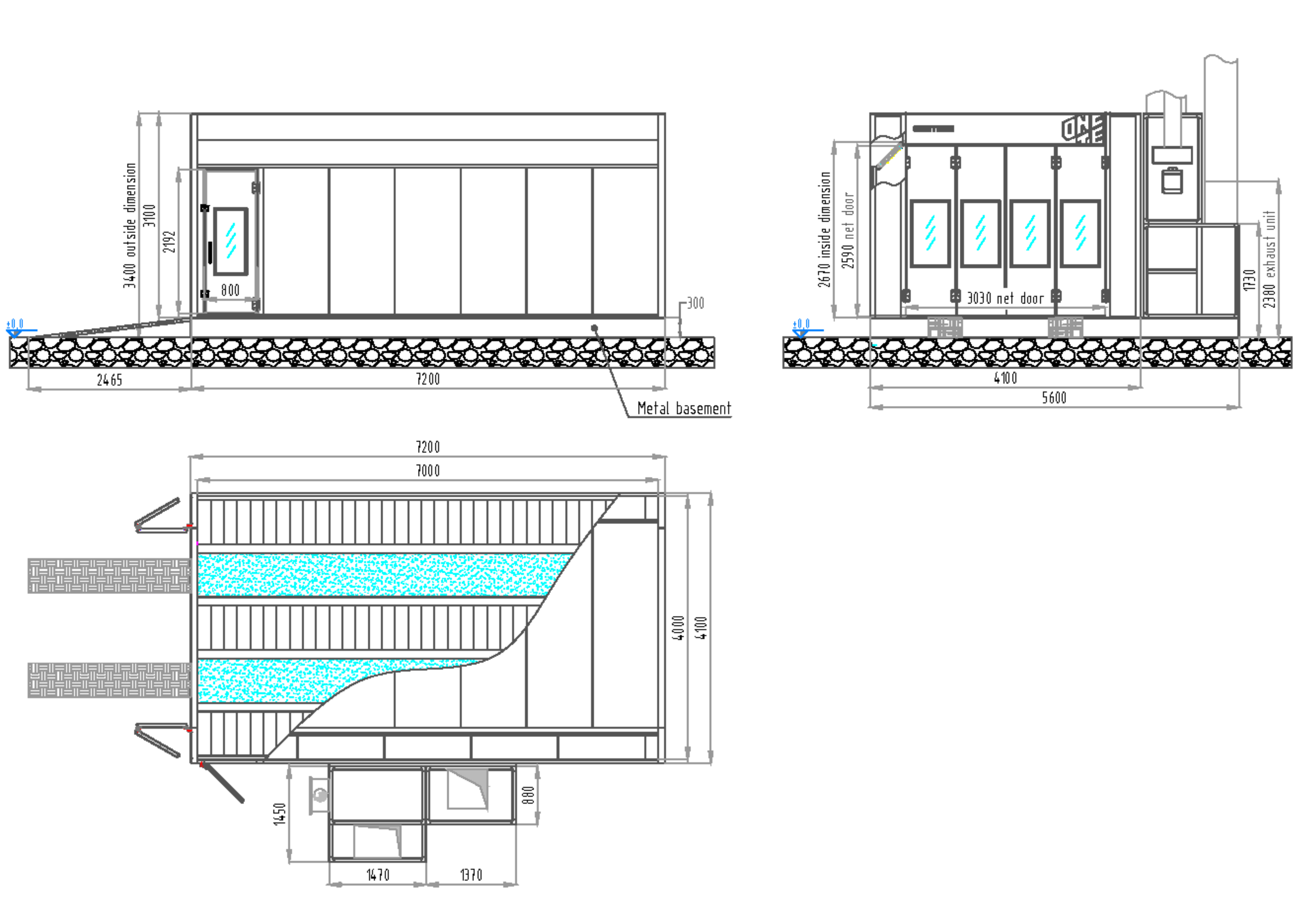

Innenmaße (L x B x H), mm
—
7 000 x 4 000 x 2 670
Abmessung, mm
—
7 200x 4 100 x 3 400 (units are excluded)
Eingangstür (B x H), mm
—
3 030 x 2 590
Servicetür mit „Anti-Panik“ (B x H), mm
—
800 x 2 192
Wandtafeln
—
50 mm with glass wool insulation
Deckenplatten
—
40 mm with PU foam insulation
All characteristics
Description
The ONETECH Basic and ONETECH Pro paint booths are designed for painting cars and individual parts.
Different solutions for the location of the plant (right, left, rear, roof), as well as the availability of options allows us to meet any customer requirements.
OPTIONS:
· Natural gas burner: Yes
· Electrical heating system: Yes
· Low level lighting (horizontal): 39 x 8 W
· Full gridded floor:
5 lines (500 kg/wheel)
2 lines (650 kg/wheel)
3 lines (500 kg/wheel)
· Invertor Yes
· Second entrance / exit door (drive through booth): Yes
· Replacement of leaf door to electric roller doors: upon request
Download catalog
Characteristics
|
Innenmaße (L x B x H), mm
|
7 000 x 4 000 x 2 670 |
|
Abmessung, mm
|
7 200x 4 100 x 3 400 (units are excluded) |
|
Eingangstür (B x H), mm
|
3 030 x 2 590 |
|
Servicetür mit „Anti-Panik“ (B x H), mm
|
800 x 2 192 |
|
Wandtafeln
|
50 mm with glass wool insulation |
|
Deckenplatten
|
40 mm with PU foam insulation |
|
Beleuchtung oben (LED), W
|
40 lamps x 16 |
|
Horizontale Beleuchtung mit niedrigem Niveau (LED), W
|
OPTION |
|
Frischluft- und Heizungsanlagen (Ventilatormotoren), kW
|
5.5 |
|
Frischluft- und Heizgeräte (Luftmenge), m3/h
|
18 000 |
|
Frischluft- und Heizeinheiten (max. Trocknungstemperatur), ⁰C
|
60 / 80 ⁰C |
|
Frischluft- und Heizeinheiten (Heizung (Dieselbrenner), kcal/h
|
182 000 |
|
Abluftanlage (Ventilatormotoren), kW
|
4 |
|
Abluftanlage (Luftdurchsatz), m3/h
|
18 000 |
|
Filtersystem (Bodenfilter „paint stop“)
|
ePM10 35~40% |
|
Filtersystem (Vorfilter)
|
ePM10 40~45% |
|
Filtersystem (Deckenfilter)
|
M5/ePM10 55% |
|
Gitterroste
|
2 lines grates (500 kg/wheel) 3 lines flat sheet |
|
Max. Gewicht, kg/Rad
|
500 |
|
Fundament aus Metall, mm
|
300 |
|
Standard-Rampe, Stück
|
2 pcs. |
|
Max. elektrische Leistung, kW
|
12 |
|
Schalttafel (Leistung), V
|
380 V, 50 Hz, |
|
Schalttafel (Befehl), V
|
3Ph (panel 24 V) |
|
Luftkanäle und Schornsteine
|
Belong to the customer |
